0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module
HomeStore

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module

Select Color
From $0.45

Original: $1.50

-70%
0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module—

$1.50

$0.45

The Story

0.36 inch DC 4.5v-30v 3-Wire Mini Gauge Voltage meter Voltmeter LED Display

  • Measuring range: DC 0.00V-30.0V
  • Power supply range: Red: DC4.50-30.0V, Green: DC 4.70-30.0V, Blue: DC5.00-30.0V
  • Working current: Red Less than 23mA, Green Less than 18mA, Blue Less than 13mA
  • Measurement accuracy:+/-1 %(+/- 1 digit)
  • Refresh Rate:about 300mS/
  • Operating Temperature:-10 c ~ +65 c
  • Display:Three 0.36 inch LED digital display
  • Display Color:Green/Red/Blue
  • Lead length: 15cm
  • Size:23 x 15 x 10 mm
  • Mounting holes distance:28mm
  • Hole diameter:2.8mm

Connections :

Red Wire: Positive of the Power supply

Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source

Yellow/White/Blue: Positive of the measurement voltage source


0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

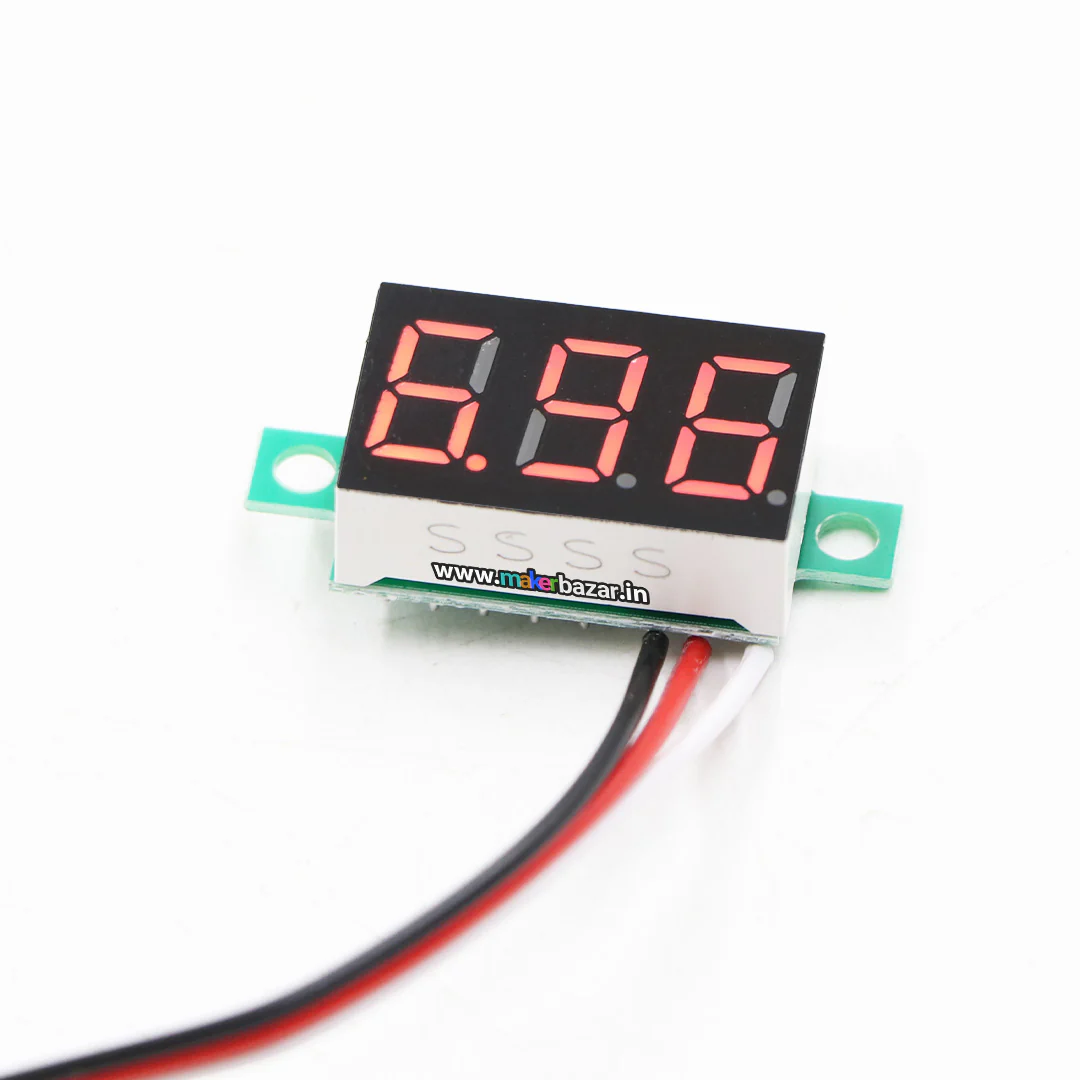

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

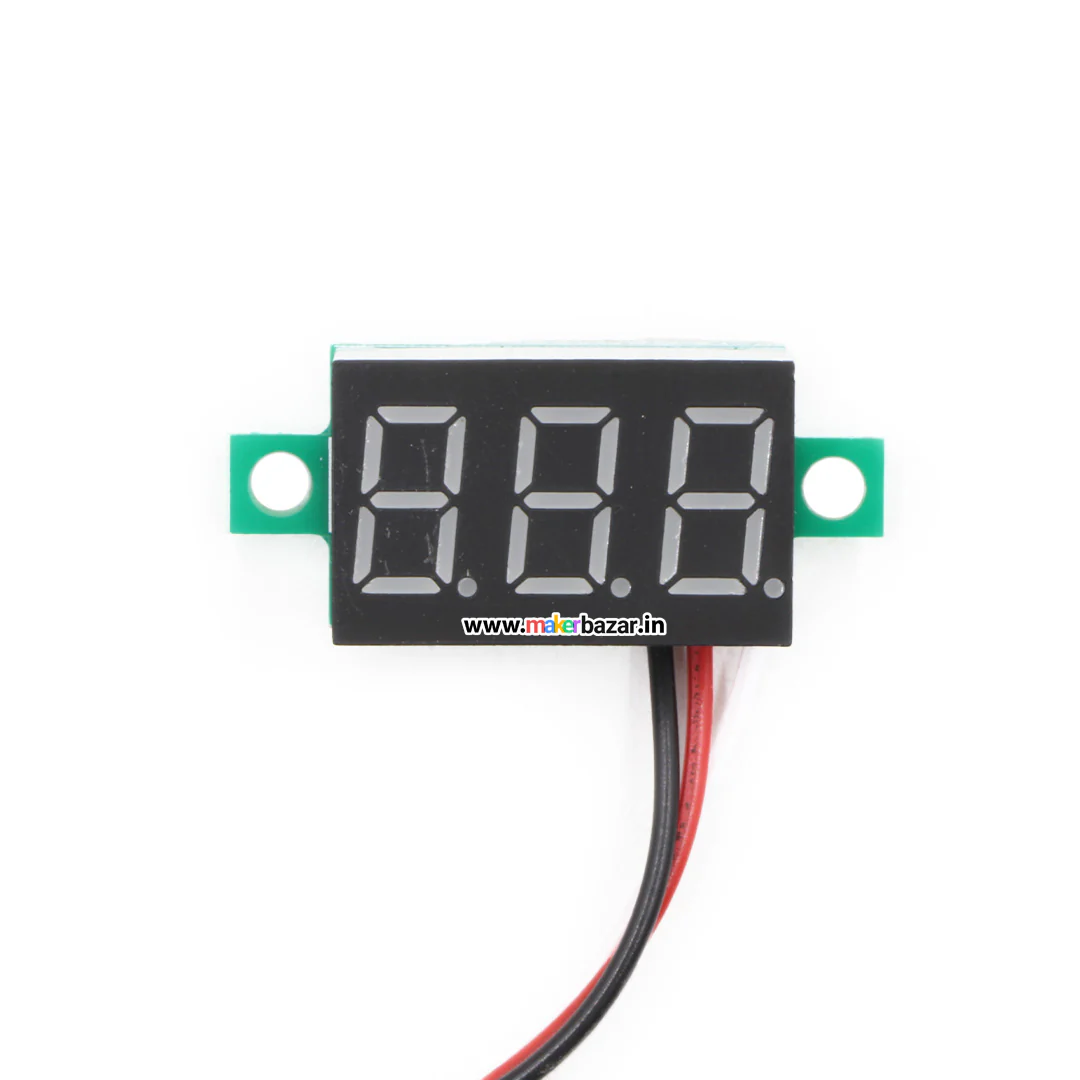

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

0.36in 30v 3-Wire 3-Digit DC Voltmeter Gauge Tester Module - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

0.36 inch DC 4.5v-30v 3-Wire Mini Gauge Voltage meter Voltmeter LED Display

  • Measuring range: DC 0.00V-30.0V
  • Power supply range: Red: DC4.50-30.0V, Green: DC 4.70-30.0V, Blue: DC5.00-30.0V
  • Working current: Red Less than 23mA, Green Less than 18mA, Blue Less than 13mA
  • Measurement accuracy:+/-1 %(+/- 1 digit)
  • Refresh Rate:about 300mS/
  • Operating Temperature:-10 c ~ +65 c
  • Display:Three 0.36 inch LED digital display
  • Display Color:Green/Red/Blue
  • Lead length: 15cm
  • Size:23 x 15 x 10 mm
  • Mounting holes distance:28mm
  • Hole diameter:2.8mm

Connections :

Red Wire: Positive of the Power supply

Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source

Yellow/White/Blue: Positive of the measurement voltage source
