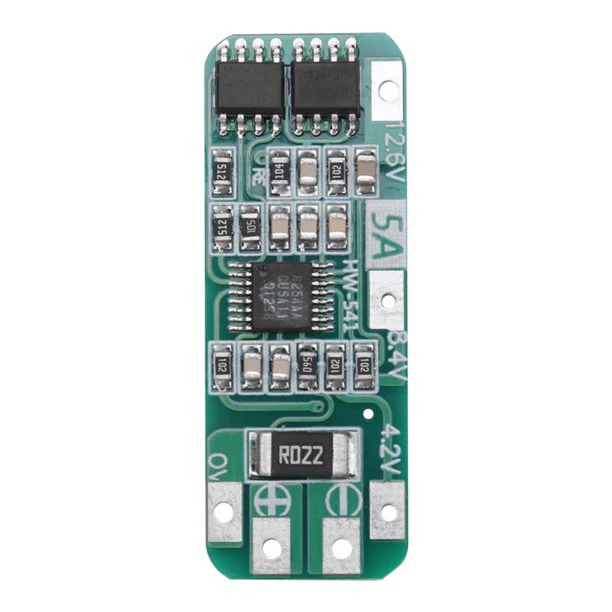

BMS 3 Series 12.6 Volt 5 Amp 18650 Lithium Battery Charge Protection Board 26650 PCB BMS For Power Bank Electric Tools Charging
The 3 Series 5A 18650 Lithium Battery Protection Board 11.1V/12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 5A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. (if the cooling environment is not good, please reduce the load current use)
The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 12.6V to 13V. The board operates smoothly with a Continuous charge current of (upper limit): 6A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
Specifications and Features:
- Product model: HW-541
- Charging voltage: DC 12.6~14V
- Maximum working current: 4~5A
- Maximum instantaneous current: 6~7A
- Battery over-discharge voltage: 2.3~2.6V
- Battery over-discharge protection recovery voltage 4.1~4.2V
- Battery over-discharge current protection point: 5.5~6.5A
- Battery overcharge protection voltage point: 4.2~4.3V
- Battery overcharge protection recovery voltage: 4.1~4.2V
Note: This product has two variants please check the images for more clarity.
