4S 8A 12.8V 32650 Lithium battery protection and charger BMS Module

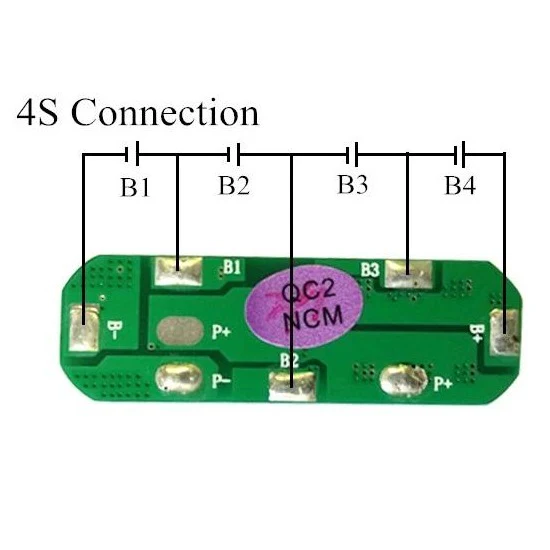

Battery Pack Output  12.8V (4S Type)
This BMS is only Used For LifePO4, not For Lithium-Ion Batteries
Deep Discharge & Over Charging Protection

Features
1) high-accuracy voltage detection circuit;
2) terminal of the charger using a high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.



Note:- This BMS is not Used for Lithium-Ion Battey 3.7v. It can be used only LFP 3.2V batteries

SIZE:- 50mm X 16mm  Approx
