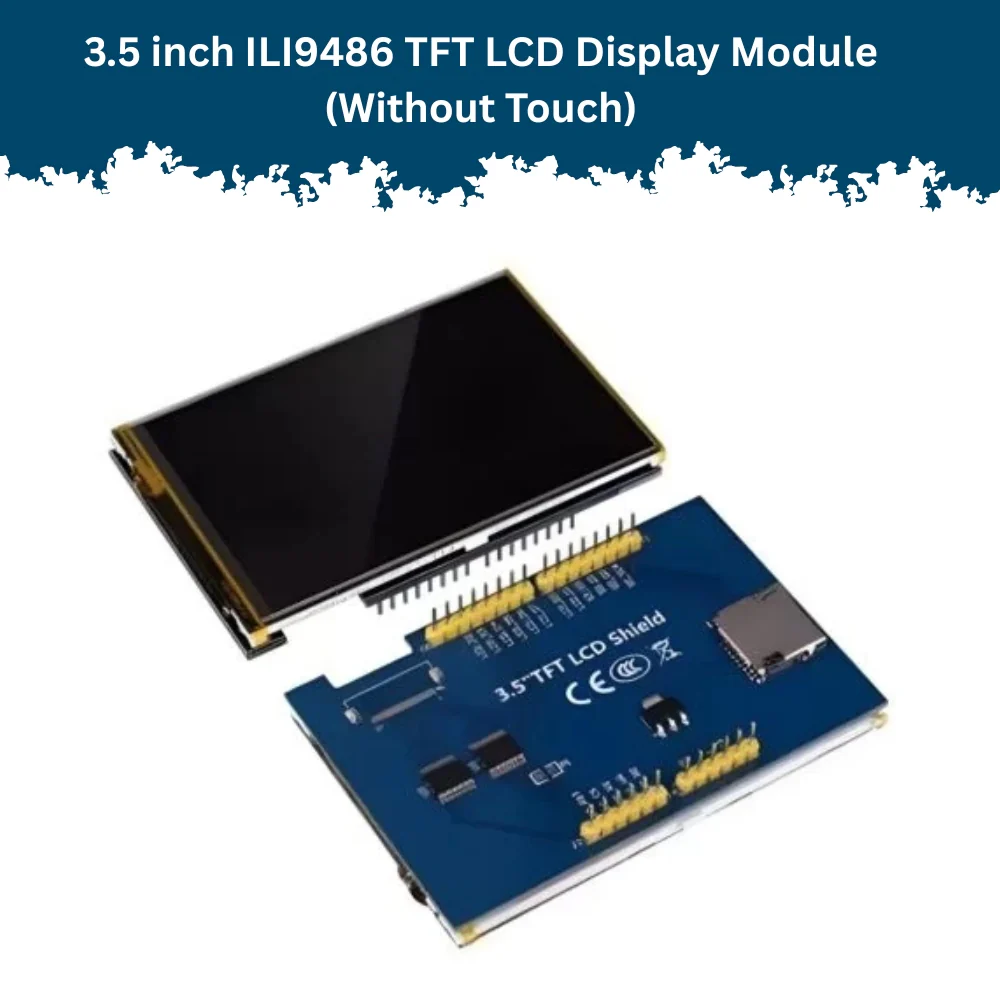

3.5inch ILI9486 TFT LCD Display Module

3.5" ILI9486 480x320 TFT Screen Shield for Arduino Uno Blue/Red

The 3.5 inch ILI9486 TFT LCD Display Module (480x320) is a vibrant, high-resolution screen designed for Arduino Uno and Mega2560 boards. Fully assembled and tested, this module is plug-and-play — no wiring or soldering needed. Simply plug it into your Arduino board, load the library, and you’ll have it up and running in minutes!

Featuring a bright 3.5" display with four white LED backlights and 18-bit color (262,000 shades), it offers a visually striking upgrade from standard monochrome screens. The display uses an 8-bit parallel interface for faster data transfer than SPI, and comes with a built-in microSD card slot for easy expansion. It’s perfect for adding rich visuals to your DIY electronics, embedded systems, or Arduino-based projects.

---

Specifications:

• Display Type: TFT LCD

• Driver IC: ILI9486

• Screen Size: 3.5 inch

• Resolution: 480 × 320 pixels

• Color Depth: 65K RGB / 18-bit color (262,000 shades)

• Backlight: 4 White-LED (default ON, controllable via digital pin)

• Touch Support:  Not included (non-touch version)

• Interface: 8-bit parallel + 4 control lines

• Active Area: 73.44 × 48.96 mm

• Module Size: 85.49 × 55.63 mm

• Operating Voltage: 5V / 3.3V (onboard level shifting supported)

• Compatibility: Arduino Uno, Mega2560, other 5V/3.3V microcontrollers

• Extras: Built-in MicroSD Card Slot

• Temperature Range:

  • Operating: -20℃ ~ 70℃

  • Storage: -40℃ ~ 70℃
