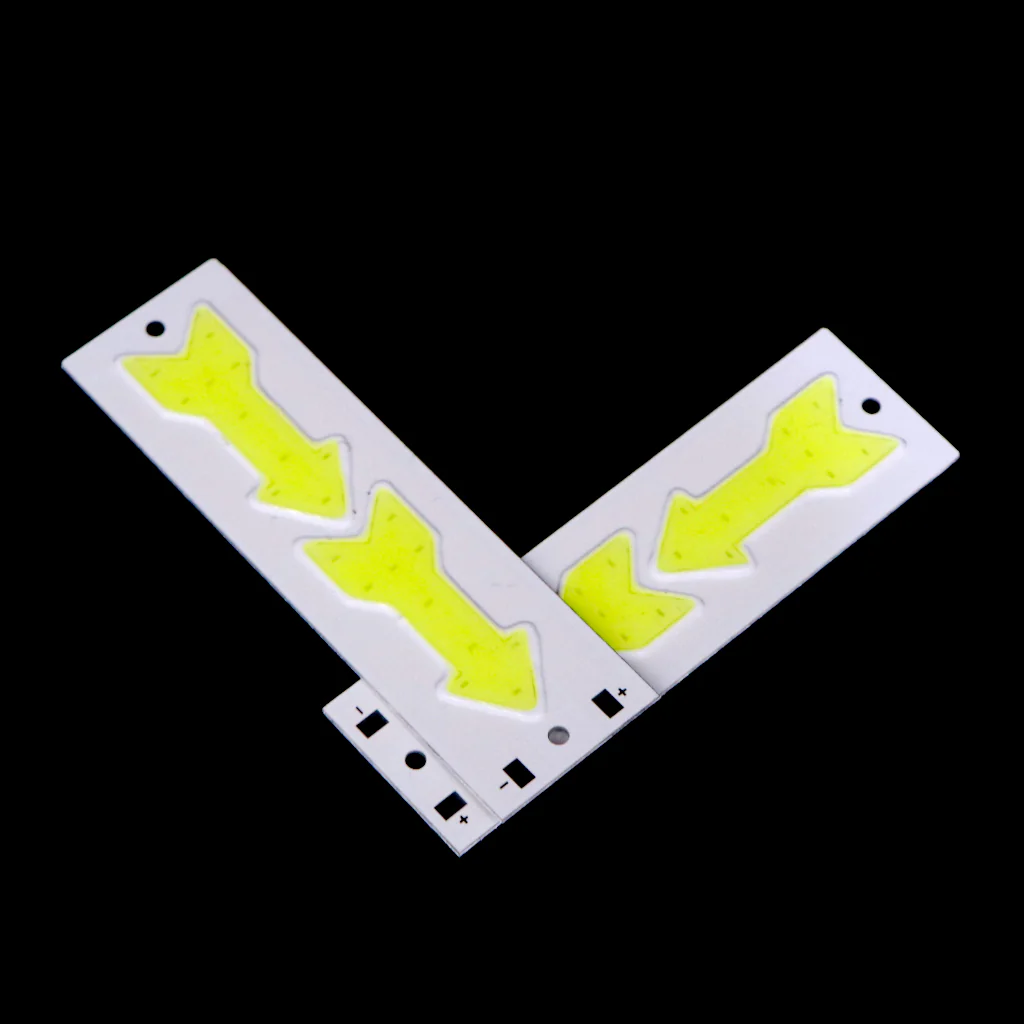

3.7v - 4V Single Arrow Shape COB led light [ Color - Cool White ]

This Chip on Board COB Led Light is a very small and innovative product, it comes in many different Shapes and Sizes. Its mostly used where the thickness of the product is a very important consideration. This led comes with an Aluminium metal back which acts as a heat-dissipating area for the Led, as these led got hot while running, but for the safety purpose we will recommend you to attach a metallic heat sink with it or paste it on the metal surface.

• Plate Dimensions ( L x B x H ):- ~74mm X ~22mm X ~2mm.

• Name of character/shape/letters on COB plate: SHAPE single side arrow


• Dimensions of Led Area ( L x B x H ) :- ~64mm X ~16mm X ~1mm.


• Thickness:- 2mm.

• Input Voltage:- 3.7v - 4V.


• Max Input Voltage:- 4v (More than 4v Voltage will completely damage the product )

• Aluminum back as a heat sink.



Package Includes:

1 x 3.7v - 4V Single Arrow Shape COB led light [ Color - Cool White ]
