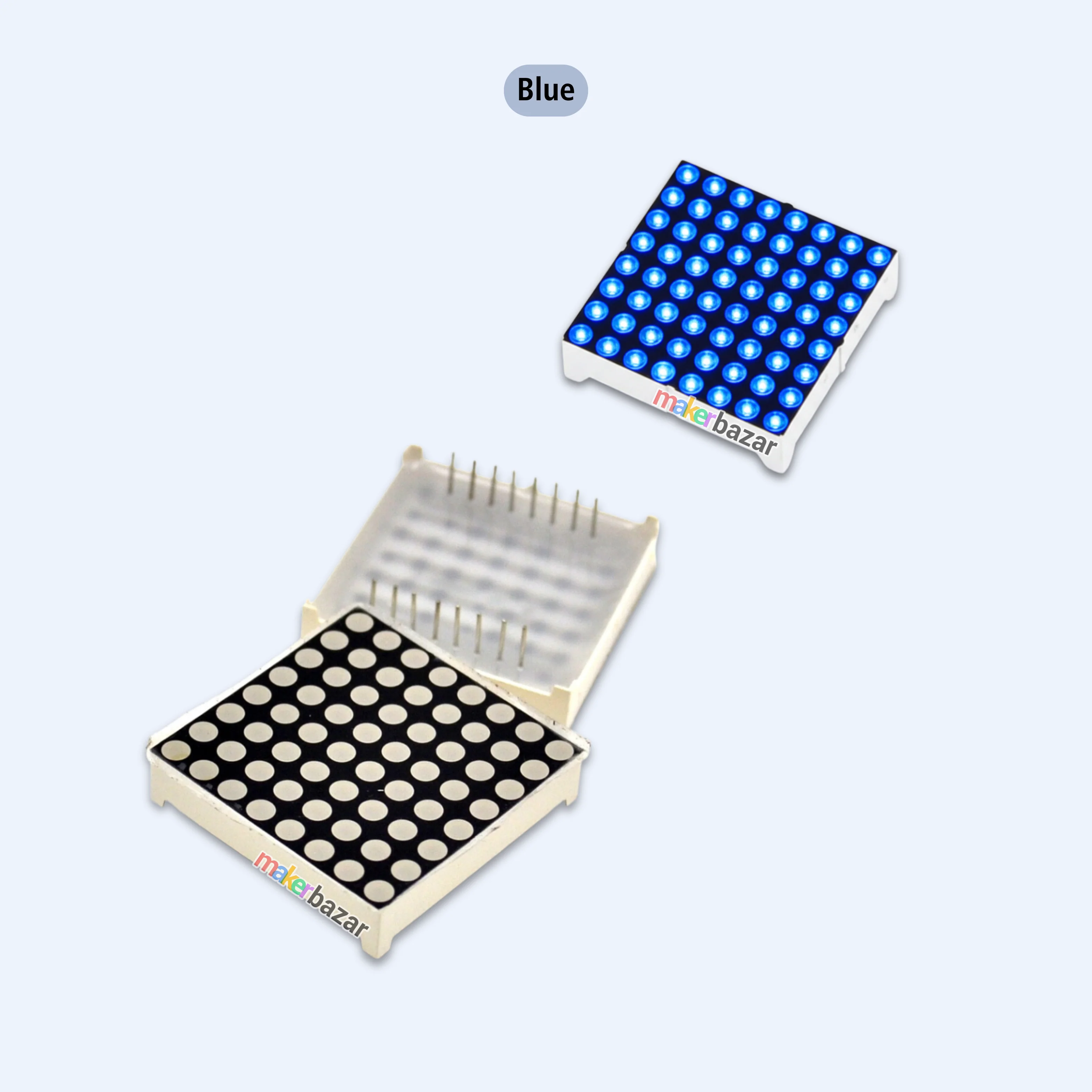

8x8 64-LED Dot Matrix Display

8×8 LED Dot Matrix Display CA

The 8×8 LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 16 pins to achieve a different combination to ON/OFF the LEDs. It fits properly into any standard solderless breadboard.. It is a Great display for electrical and test equipment. The diameter of the Led is about 3mm with common anode configuration which emits Red colour.  The Exact dimensions of this module are shown in the Schematic image.

These Displays are always in high demand in the DIY community as well as in  Industrial Projects due to their multipurpose uses and cheap cost.

Applications:

1. Bar-Graph Displays
2. 7-Segment Displays
3. Industrial Controllers
4. Electronic Panel Meters
5. LED Matrix Displays
6. PIXEL gaming.
7. Character design.
8. Measuring instruments.
9. Hobby projects.
10. Display of symbols, simple graphics and texts.

Features

1. Easy to Install on Breadboard
2. Bright LED lights
3. Compact Design.
4. LED Size: 3mm
5. Configuration: Common Cathode
