5-Volt WS2812B DC RGB Addressable LED Strips Roll

5-Volt WS2812B DC RGB Addressable LED Strips Roll

5-Volt WS2812B DC RGB Addressable LED Strips Roll

Select LEDs Quantity (Pixels)

Select IP Code (Water Protection)

Select Length

From $2.15

5-Volt WS2812B DC RGB Addressable LED Strips Roll—

$2.15

The Story

5-Volt RGB Addressable Pixel Strip for Arduino

This is Addressable LED Strip DC 5V. The installation surface must be smooth, clean, and dry. The part of LED components cannot be fixed on the surface of the sharp edges. The strip should not be collided or crushed. The strip can be cut following the cutting lines 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel. The one-wire digital control interface with each RGB LED draws approximately 50 mA at 5V with red, green, and blue at full brightness.

Input voltage: DC 5V
Power:

30Leds/m ---- 6Watt/meter
60Leds/m ---- 12Watt/meter
74Leds/m ---- 14.8 Watts/meter
96Leds/m ---- 19.2 Watts/meter
144Leds/m ---- 28.8 Watts/meter

LED Source: WS2812B Led(5050 SMD RGB LED with built-in upgraded version of WS2811 IC)
LED: Each LED is controlled individually
IC type: upgraded version WS2812 IC (built in the 5050SMD RGB LED)
Of IC: 1 IC Drives 1 LED Chip
Pixels: 30/60/74/96/144/meter
Pitch: 16.6mm(1000/64)
Gray Scale: 256
Bits/Color: 8 bits/Color
FPC Width:

30Leds/m --- 10mm
60Leds/m ---- 10mm
74Led/m --- 10mm
96Led/m --- 10mm
144Leds/m ---- 12mm

FPC color: Black/White (Random)
Protection rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Each LED is Cuttable

* Product Images are shown for illustrative purposes only and may differ from the actual product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

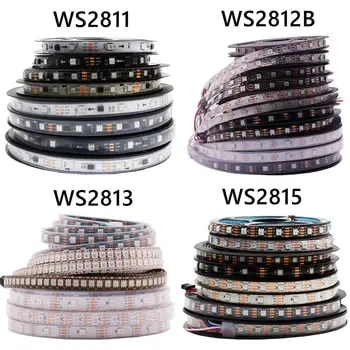

5-Volt WS2812B DC RGB Addressable LED Strips Roll - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

5-Volt RGB Addressable Pixel Strip for Arduino

This is Addressable LED Strip DC 5V. The installation surface must be smooth, clean, and dry. The part of LED components cannot be fixed on the surface of the sharp edges. The strip should not be collided or crushed. The strip can be cut following the cutting lines 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel. The one-wire digital control interface with each RGB LED draws approximately 50 mA at 5V with red, green, and blue at full brightness.

Input voltage: DC 5V
Power:

30Leds/m ---- 6Watt/meter
60Leds/m ---- 12Watt/meter
74Leds/m ---- 14.8 Watts/meter
96Leds/m ---- 19.2 Watts/meter
144Leds/m ---- 28.8 Watts/meter

LED Source: WS2812B Led(5050 SMD RGB LED with built-in upgraded version of WS2811 IC)
LED: Each LED is controlled individually
IC type: upgraded version WS2812 IC (built in the 5050SMD RGB LED)
Of IC: 1 IC Drives 1 LED Chip
Pixels: 30/60/74/96/144/meter
Pitch: 16.6mm(1000/64)
Gray Scale: 256
Bits/Color: 8 bits/Color
FPC Width:

30Leds/m --- 10mm
60Leds/m ---- 10mm
74Led/m --- 10mm
96Led/m --- 10mm
144Leds/m ---- 12mm

FPC color: Black/White (Random)
Protection rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Each LED is Cuttable

* Product Images are shown for illustrative purposes only and may differ from the actual product.
