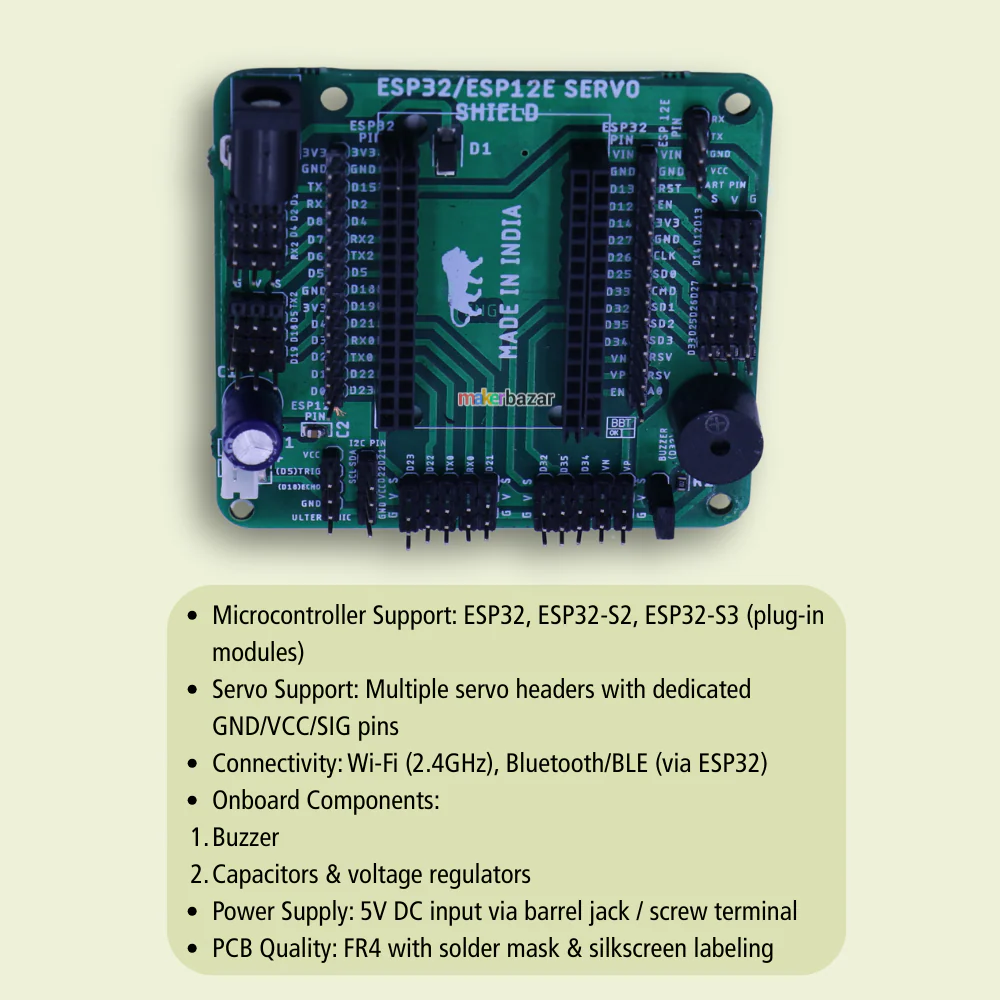

ESP32/ESP12E Compatible Servo Development Board for Robotics & Automation

The ESP32 Servo Development Board is a powerful shield designed to control multiple servo motors with ease, making it perfect for robotics, IoT, and automation projects. Compatible with ESP32, ESP32-S2, and ESP32-S3 modules, it provides stable power regulation, dedicated servo headers, and onboard peripherals like a buzzer. Ideal for building robotic arms, smart automation systems, and IoT-enabled devices, this board offers both flexibility and reliability.

---

⭐ Key Features

• Supports ESP32 / ESP32-S2 / ESP32-S3 modules

• Multiple servo motor control headers

• Onboard buzzer for signaling and alerts

• Dedicated 3.3V & 5V regulated power supply

• High-quality FR4 PCB with labeled pinouts

• Compact design, ideal for DIY robotics and IoT projects

• Wi-Fi + Bluetooth support (via ESP32 module)

---

🔧 Technical Specifications

• Microcontroller Support: ESP32, ESP32-S2, ESP32-S3 (plug-in modules)

• Servo Support: Multiple servo headers with dedicated GND/VCC/SIG pins

• Connectivity: Wi-Fi (2.4GHz), Bluetooth/BLE (via ESP32)

• Onboard Components:

  • Buzzer

  • Capacitors & voltage regulators

• Power Supply: 5V DC input via barrel jack / screw terminal

• PCB Quality: FR4 with solder mask & silkscreen labeling

• Applications:

  • Robotics (robotic arms, quadrupeds, humanoids)

  • Smart automation

  • IoT-enabled servo control systems

  • Educational projects & prototyping
