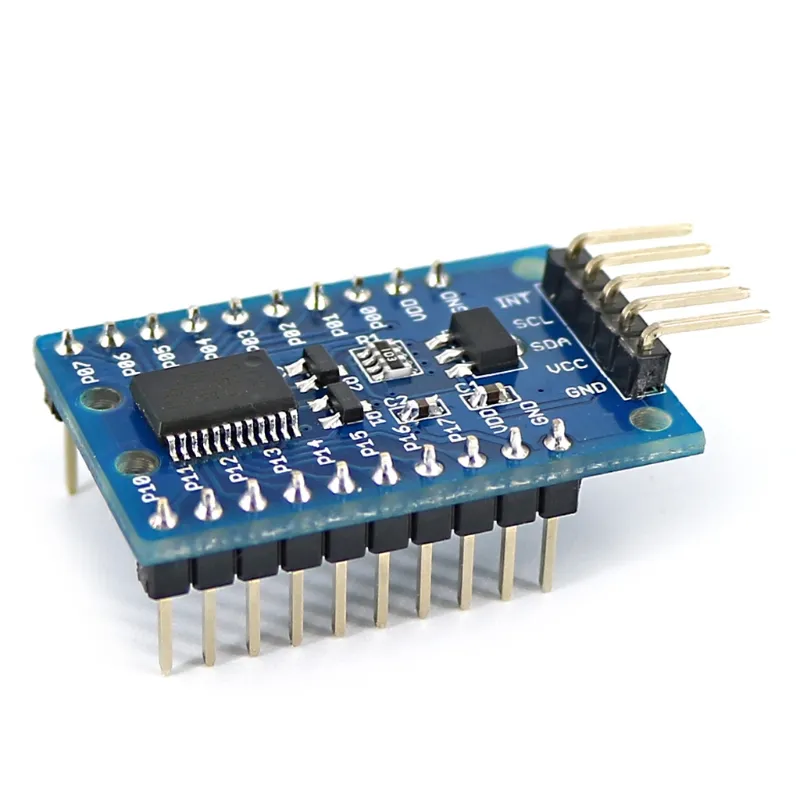

-70%PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module—
$2.15
$0.64The Story
PCF 8575 IO Expander Module I2C To 16 IO
Are the I/O pins exhausted? This PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module is a large module allows the user to expand up to 16 i/o with only two i/o for control. The PCF8575 is connected via an I2C interface and features 16-bit near-bi-directional input/output pins.
Onboard 3.3V level converter circuit, if you don’t have a solder pad of VCC-VDD, the PCF8575 level is 3.3V. If you solder it, the level will be the same as with VCC
Features:
- 16 individually addressable pins.
- Each pin configurable for input or output
- Open drain interrupts output pin for input change interrupt.
- Ideal for R3 and other MCUs to simple relay, buzzer, button, led.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
PCF 8575 IO Expander Module I2C To 16 IO
Are the I/O pins exhausted? This PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module is a large module allows the user to expand up to 16 i/o with only two i/o for control. The PCF8575 is connected via an I2C interface and features 16-bit near-bi-directional input/output pins.
Onboard 3.3V level converter circuit, if you don’t have a solder pad of VCC-VDD, the PCF8575 level is 3.3V. If you solder it, the level will be the same as with VCC
Features:
- 16 individually addressable pins.
- Each pin configurable for input or output
- Open drain interrupts output pin for input change interrupt.
- Ideal for R3 and other MCUs to simple relay, buzzer, button, led.
