Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent
HomeStore

Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent

Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent

Select Qty
From $0.02

Original: $0.08

-75%
Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bentā€”

$0.08

$0.02

The Story

Slide Switch RA ā€“ PCB Mount (Pitch 0.1 inch) Right Angle

These tiny slide switches are widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. You can also use this for DIY projects since the pins are easily solderable.

Features

  • Right angled Slide Switch. Type - 1 Pole 2 Throw
  • Green High quality Fibre Glass
  • Working Power :0.5A 50V DC
  • Contact Resistance: 30mĪ© Max, Insulation Resistance:100mĪ© Min at 500V DC
  • Maximum Voltage:AC 500V for 10 Seconds
  • Pin Pitch:2.54mm / 1""
  • Dimensions : Main Body Size: 13 x 6.5 x 5.5mm
  • Material(External):Plastic, Metal
  • Color: Silver Tone, Black

SpecificationsĀ

  • Right angled Slide Switch. Type - 1 Pole 2 Throw
  • Easy Structure, Mini Body, 3 Terminal, Vertical Handle
  • 1 Pole 2 -Position, Sliding Knob Actuator
  • Contact Resistance: 30mĪ© Max, Insulation Resistance:100mĪ© Min at 500V DC
  • Maximum Voltage:AC 500V for 10 Seconds
  • Pin Pitch:2.54mm / 1""
Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

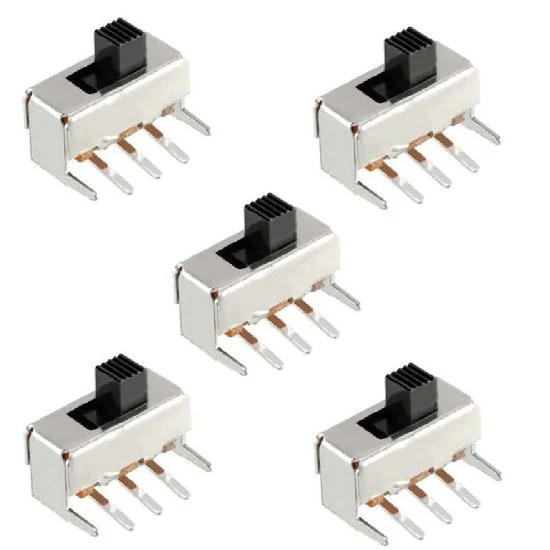

Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

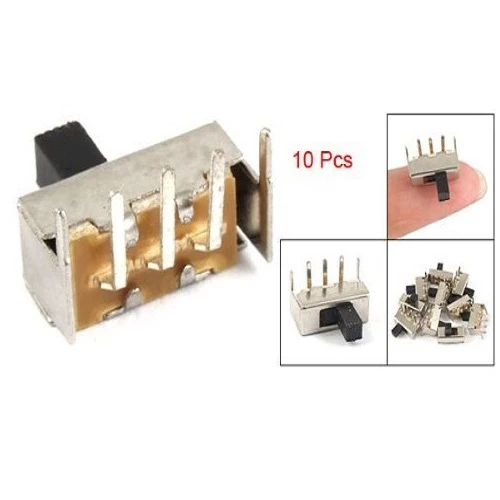

Right Angle 3 Pin 2 Position SPDT 1P2T PCB Panel Mini Slide Switch L Shape Bent - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Slide Switch RA ā€“ PCB Mount (Pitch 0.1 inch) Right Angle

These tiny slide switches are widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc. You can also use this for DIY projects since the pins are easily solderable.

Features

  • Right angled Slide Switch. Type - 1 Pole 2 Throw
  • Green High quality Fibre Glass
  • Working Power :0.5A 50V DC
  • Contact Resistance: 30mĪ© Max, Insulation Resistance:100mĪ© Min at 500V DC
  • Maximum Voltage:AC 500V for 10 Seconds
  • Pin Pitch:2.54mm / 1""
  • Dimensions : Main Body Size: 13 x 6.5 x 5.5mm
  • Material(External):Plastic, Metal
  • Color: Silver Tone, Black

SpecificationsĀ

  • Right angled Slide Switch. Type - 1 Pole 2 Throw
  • Easy Structure, Mini Body, 3 Terminal, Vertical Handle
  • 1 Pole 2 -Position, Sliding Knob Actuator
  • Contact Resistance: 30mĪ© Max, Insulation Resistance:100mĪ© Min at 500V DC
  • Maximum Voltage:AC 500V for 10 Seconds
  • Pin Pitch:2.54mm / 1""
